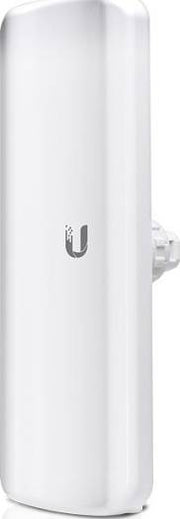

Ubiquiti airMAX LiteAP AC PTMP Access Point with GPS Sync
The Ubiquiti airMAX LiteAP LAP-GPS is the latest high-performance access point with disruptive pricing from Ubiquiti Networks. Featuring an ultra-lightweight form factor, the LiteAP AC is an affordable cost/performance solution for long-distance, wireless broadband bridging. The access point operates in the worldwide, license-free 5 GHz frequency range with high-performance speeds.
- Wi-Fi 5 (802.11ac)
- Up to 450 Mb/s
- 5 GHz (Single-Band)
- 1 x Gigabit LAN Port
- GPS Sync
- Outdoor Access Point
- Includes Pole Mounting Kit & PoE Adapter
The LiteAP AC combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value. It also delivers up to 450+ Mbps real TCP/IP throughput and features an efficient form factor.
GPS Sync Support
Precise GPS frame synchronisation enables co-located LAP-GPS devices to transmit and receive data without interfering with each other, allowing for better frequency reuse and increased network stability.
Quick Installation
Minimal fasteners simplify installation. No tools are needed; only a single wrench is required for pole-mounting.
Versatile Mounting
The ball-joint mount of the LiteAP AC provides adjustment flexibility for versatile mounting options.
Efficient Design
The LiteAP AC features a lightweight antenna with an integrated radio in a sleek design.
Gigabit Ethernet
The LiteAP AC delivers high throughput over its wired connection.
Deployment Example
Specifications
| Mechanical | |
|---|---|
| Dimensions | 361 x 124.6 x 71.3 mm (14.2 x 4.9 x 2.8") |
| Weight | 752 g (1.66 lb) |
| Wind survivability | 200 km/h (125 mph) |
| Wind loading | 77 N at 200 km/h (17.3 lbf at 125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE (pairs 4, 5+; 7, 8 return) |
| Power supply | 24V, 0.3A Gigabit PoE adapter (Included) |
| Supported voltage range | 20—26V DC |
| Max. power consumption | 7.1W |
| Max. TX power | 25 dBm |
| Antenna gain | 17 dBi |
| ESD/EMP protection | Air/contact ± 24kV |
| Shock and vibrations | ETSI300-019-1.4 |
| Operating temperature | -40 to 70° C (-40 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
