ntroduce 5G, Rebuild Connection

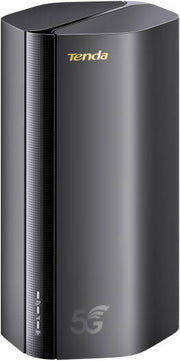

5G03 AX1800 Wi-Fi 6 5G NR Router
Specifications
| Processor | 7nm, Quad cores,core frequency 2 GHz |
| Cellular Technologies | 5G/4G/3G Multi-Mode, 5G NR SA/NSA, 4G FDD/TDD LTE, 3G WCDMA |
| 5G NR 3GPP | Release 15 |
| 5G NR Peak Download Speed | 4.67 Gbps |
| 5G NR Peak Upload Speed | 1.25 Gbps |
| NR Frequency Band |
5G NR (Bands n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78) FDD-LTE (Bands 1, 3, 5, 7, 8, 20, 28, 32) TD-LTE (Bands 38, 40, 41, 42, 43) WCDMA (850, 900, 2100 MHz) |
| 5G NR Download MIMO | SISO,2*2,4*4 |
| 5G NR Upload MIMO | SISO,2*2 |
| 5G NR Download Modulation | QPSK, 16QAM,64QAM,256QAM |
| 5G NR Upload Modulation | QPSK, 16QAM,64QAM,256QAM |
| Wireless Connectivity | Wi-Fi 6 (802.11ax) with 2x2 MIMO |
| Wi-Fi speed |
574Mbps on 2.4 GHz 1201Mbps on 5 GHz |
| Wi-Fi standards | 802.11b/g/n,802.11ac,802.11AX |
| Wi-Fi frequency | 2.4GHz,5GHz |
| Wi-Fi transmit Power |
2.4GHz:up to 20dBm 5GHz: up to 23dBm |
| Ethernet Ports |
1 × 10/100/1000 Mbps LAN/WAN Port 1 × 10/100/1000 Mbps LAN Port |
| SIM Card | 1*Nano SIM（4FF） |
| Button |
1× Power on/off 1× RST hole 1×MESH/WPS |
| Antennas and Ports |
8 × Internal 5G/4G Antennas 2 × Internal Wi-Fi Antennas 2 × TS-9 antennas ports |
| WAN Type | 4G/5G or Wired |
| 5G/4G Features |
Auto-APN 5G SA/NSA dual mode Auto dial-up 5G Location optimization 5G/4G E-UTRAN New Radio–Dual Connectivity Roaming SMS(Send/Receive/Delete) USSD Data limted PIN Management |
| Wi-Fi functions |
Broadcast and Hide Wi-Fi name Priority 5GHz Wi-Fi Guest network Wi-Fi schedule OFDMA MU-MIMO |
| Wi-Fi security | WPA2/WPA3,WPA/WPA2,WPA2-PSK,WPA-PSK,WEP |
| Software features |
EasyMesh Parental control DHCP(DHCP Server and Client) Virtual Server(UPnP/DMZ/Port Forwarding) DDNS(DynDns, 88ip) VPN(PPTP Client/L2TP Client/PPTP Server/IPSEC) Firewall QOS Upgrade firmware from local or OTA |
| Certifications |
FCC Granted CE Granted ROHS Granted |
| Temperature |
Operating Temperature: 0℃~40℃ Storage Temperature: -30ºC~70ºC |
| Humidity |
Operating Humidity: 10% ~ 90% RH Non-condensing Storage Humidity: 5% ~ 90% RH Non-condensing |
| Contents |
1 * 5G NR Router 1 * Ethernet cable 1 * Power adapter 1 * User Guide |
