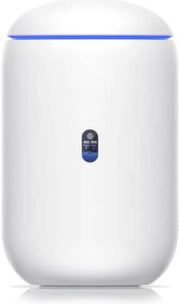

Dream Router
The Dream Router (UDR) is a next-generation WiFi 6 router that delivers unbeatable performance at an unmatched price. Featuring advanced 4x4 MU-MIMO and OFDMA technology, the UDR has an aggregate wireless throughput rate of up to 3 Gbps over its 2.4 and 5 GHz bands, ensuring quality connectivity for all of your devices. The UDR also has (5) GbE RJ45 ports, including two that supply PoE to compatible devices, and all of its connections can be conveniently monitored from the router's LCM color screen. Designed to be a comprehensive, easy-to-use network hub, the UDR can be set up and configured in minutes via the UniFi Network web application or mobile app.
Key Features
- Four-stream WiFi 6 technology
- 5 GHz band (4x4 MU-MIMO/OFDMA) with a 2.4 Gbps throughput rate
- 2.4 GHz band (4x4 MIMO) with a 600 Mbps throughput rate
- 128 GB of internal storage
- (1) GbE RJ45 WAN port
- (4) LAN ports, including (2) PoE outputs
- 0.96" LCM color screen for network and connection monitoring
- Micro SD memory card expansion slot*
Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø110 x 184.1 mm (Ø4.3 x 7.3") |
| Weight | 1.2 kg (2.5 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Processor | Dual-core Arm® Cortex® A53 at 1.35 GHz |
| System memory | 2 GB |
| Expansion slot |
Micro SD memory card* *Requires a memory card with at least 128 GB of storage. |
| Management interface |
Ethernet Bluetooth |
| Networking interface |
LAN: (4) GbE RJ45 ports WAN: (1) GbE RJ45 port |
| PoE interface | (2) PoE (Pair B 4, 5+; 7, 8-) |
| Power method | Universal AC input, 100—240V AC, 1.1A Max., 50/60 Hz |
| Power supply | AC/DC, internal, 50W |
| Supported voltage range | 100—240V DC |
| Max. power consumption | 19.37W (Excluding PoE output) |
| PoE budget | 40W |
| Max. PoE wattage per port by PSE | 15.4W |
| Voltage range PoE mode | 44—57V DC |
|
Max. TX power 2.4 GHz 5 GHz |
26 dBm 26 dBm |
|
MIMO 2.4 GHz 5 GHz |
4 x 4 4 x 4 |
|
Throughput rate 2.4 GHz 5 GHz |
600 Mbps 2.4 Gbps |
|
Antenna gain 2.4 GHz 5 GHz |
3.4 dBi 4.3 dBi |
| Antenna | (1) Internal, dual-band, quad-polarity antenna |
| LCM display | (1) 0.96" screen |
| Button | Factory reset |
| LEDs | White/blue |
| Operating temperature | -10 to 45° C (14 to 113° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance |
WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security |
Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking |
License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
