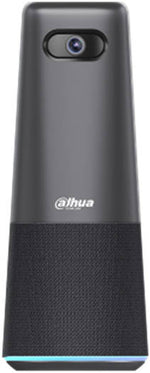

VCS-C4B0
1080P All-in-one USB Camera
> Image Effect
1080P@30fps FHD, 100° large wide Angle, without distortion; Provide clear wide range picture and natural color.
> Audio Collection
Omnidirectional 4-mic array algorithm, 360° 4m (radius) sound pickup.
> Audio Processing
Adopt advanced voice optimization technology, process multi- dimensional voice, present more nature, abundant and clear voice.
> Audio Rendering
Support AI noise reduction/AEC/ANS/AGC; Effectively suppress noise and eliminate echo, ensure fluent and uninterrupted communication between participants.
> Installation & Appearance
All-in-one design, plug and play, support touch buttons and diversified indicators, make the operation more simple, fast and convenient.
> Software Compatibility
Compatible with mainstream Online Conference Platforms.
> CertificationCE/FCC/UKCA/IC approved.
Specifications
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sensor Type |
1/2.9" CMOS, 2M Pixel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
2.9 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
Diagonal: 110°; Horizontal: 100°; Vertical: 60° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Format |
YUV: 360P@30fps/25fps MJPEG: 1080P@30fps/25fps; 720P@30fps/25fps; 480P@30fps/25fps; 360P@30fps/25fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
FHD 1080P@30fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compression |
MJPEG/YUV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
UVC Protocol |
UVC1.1/1.5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Aspect Ratio |
16: 9 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Auto Exposure |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
White Balance |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anti-flickering |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Digital Noise Reduction |
3D Digital Noise Reduction |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SNR |
38dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Interface |
M12-P0.5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Distortion |
<1% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close-up distance |
0.35m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Microphone |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Microphone Type |
4 Units MEMS Microphone |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Position |
Omnidirectional |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pickup Distance |
4m (radius) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sensitivity |
-26dBFS 94dB SPL@1kHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N |
65dBA 94dB SPL@1kHz, A-weighted |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Coding Format |
PDM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Speakerphone |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Rated output |
4Ω/1.5W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective frequency range |
140Hz ~20kHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Volume |
80±3dB (800,1000,1200,1500Hz) @1W/1m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
THD |
≤3% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Beamforming |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Background noise suppression |
Max 18dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Full-duplex communication |
Support, interrupt momentarily |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Echo cancellation |
Support, ≥56dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AGC |
Support, 4m radius range |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Reverbration suppression |
RT60<1s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Interface |
USB2.0 Type-C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Cable Length |
1.5m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Status Indicator |
LED Yellow-Power on/ Operate-Blue/ Mute-Red |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
USB 5V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Color |
Gray |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Input Current |
500mA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Power Consumption |
2.5W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimension |
109 mm (Ø) x 275 mm (H) (4.3''×10.8'') |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
773g(1.7lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Box Dimension |
144.5mm×125.5mm×334.5mm (5.7''×4.9''×13.2'') |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Box Weight (with 1 product) |
1344.5g(2.96lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protective Box Dimension |
526mm×310mm×356mm (20.7''×12.2''×14'') |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Method |
8 in 1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
0° ~ +50° (0℉ ~ +122℉) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
20% ~ 80% (Noncondensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Continuous Operating Time |
7*24h |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
-10° ~ +60° (14℉ ~ +140℉) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
5% ~ 95% (Noncondensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System Requirements |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
OS |
Windows® 7 , Windows 8.1, Windows 10 or Higher |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE: EN 55032:2015+A11:2020;EN IEC61000-3-2:2019;EN 61000-3-3:2013+A1:2019 ;EN 55035:2017+A11:2020; EN 62368-1:2014+A11:2017(LVD) FCC: FCC CFR Title 47, Part 12, Subpart B ANSI C63.4-2014 UKCA: BS EN 55032:2015+A11:2020; BS EN IEC61000-3-2:2019; BS EN 61000-3-3:2013+A1:2019 ; BS EN 55035:2017+A11:2020; BS EN 62368-1:2014+A11:2017(LVD) IC: ICES-003 Issue 7 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE(EMC): EN 55032:2015+A11:2020,Class B; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55024:2010+A1:2015; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE(LVD): EN 62368-1:2014+A11:2017; IEC 62368-1:2014 (Second Edition) FCC: 47 CFR FCC Part15, Subpart B, Class B |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
