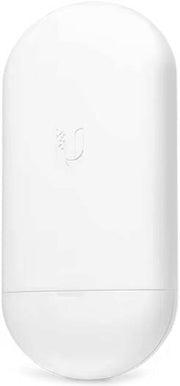

Ubiquiti Networks NanoStation AC Loco 5 GHz airMAX, 450+ Mbps Throughput, Atheros MIPS 74K 560 MHz, 45° Beamwidth, 10+ km Link Range airOS 8, Gigabit Ethernet pORT, White | Loco-5AC
airMAX NanoStation 5AC Loco
Designed for deployment in a variety of environments in which point to multi-point communication is needed, the NanoStation AC loco 5 GHz airMAX ac Radio from Ubiquiti Networks offers enhanced connectivity options. This radio comes equipped with a Gigabit Ethernet networking interface and supports 10/20/30/40/50/60/80 MHz channel bandwidths. Installation is simple, thanks to the included pole-mount kit, while the outdoor UV stabilized plastic enclosure allows the airMAX ac radio to be installed in nearly any environment.
Key Features
- Gigabit Ethernet Networking Interface
- 10/20/30/40/50/60/80 MHz Bandwidth
- 560 MHz MIPS 74K Processor
- 64 MB DDR2 Memory
- 1.8:1 Max VSWR
- 45° Beamwidth
- Dual Linear Polarization
- Outdoor Stabilized UV Plastic Enclosure
- Includes Pole-Mount Kit
Specification
| NANOSTATION | |
|---|---|
| Dimensions | 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33") |
| Weight | 0.18 kg (6.35 oz) |
| Processor | MIPS 74K |
| Memory | 128 MB |
| Gain | 13 dBi |
| Channel Bandwidth | 10/20/30/40/50/60/80 MHz |
| Networking Interface | 10/100/1000 Mbps Ethernet Port |
| LEDs | Power, Ethernet, (4) Signal Strength |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power Supply | 24V, 0.5A Gigabit PoE Supply (Not Included) |
| Max. Power Consumption | 8.5W |
| Supported Voltage Range | 24V ±10% |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
